Turned out great! Was initially criticized that they were gonna be too bright for the room, but everyone has been shocked with how good it looks.
Why go low voltage?
Because you use your garage for more than one thing.
See every swirl
Turn it all the way up. CRI >90 light shows true paint color, so swirls and defects are easy to spot.

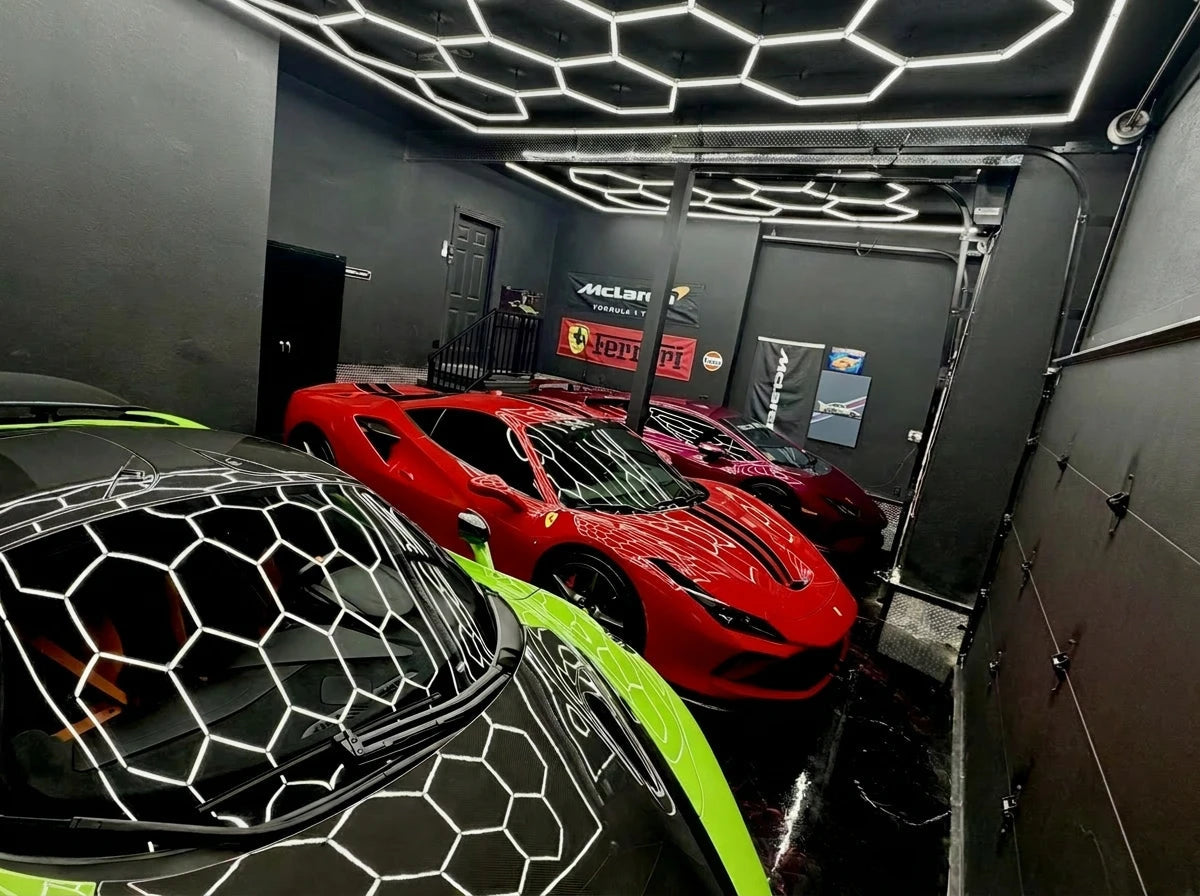

Then make it a showroom
Dim it down for guests, photos or a late night in the garage. Smooth, not stepped.
Control it from the car
Use the wall dimmer at the door or the 2.4GHz remote from anywhere in the room.
Kit finder
Which kit do I need?
Tap your space. We'll show the size that fits and what comes with it.
*5 drivers = 981.5 W ÷ 240 W, rounded up.
Different shape? Angled walls, posts or a lift in the way? Get a custom layout →

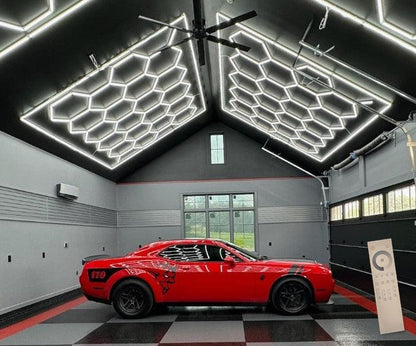

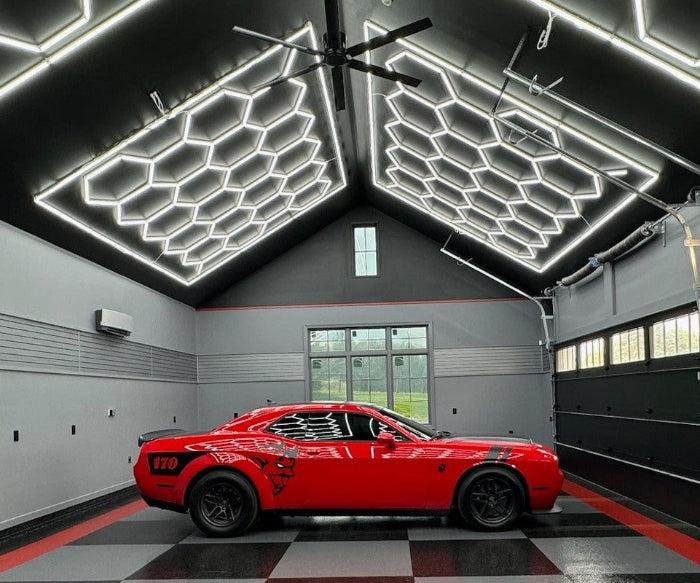

Our pick for a 1-car garage
11.8×15.7 ft

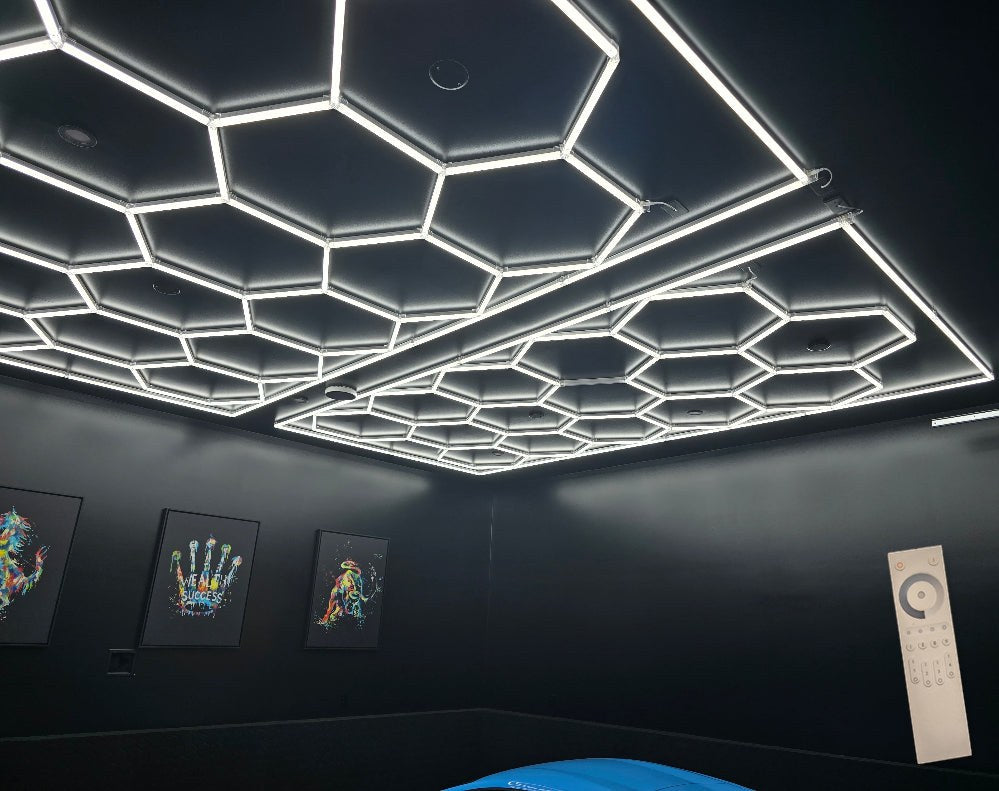

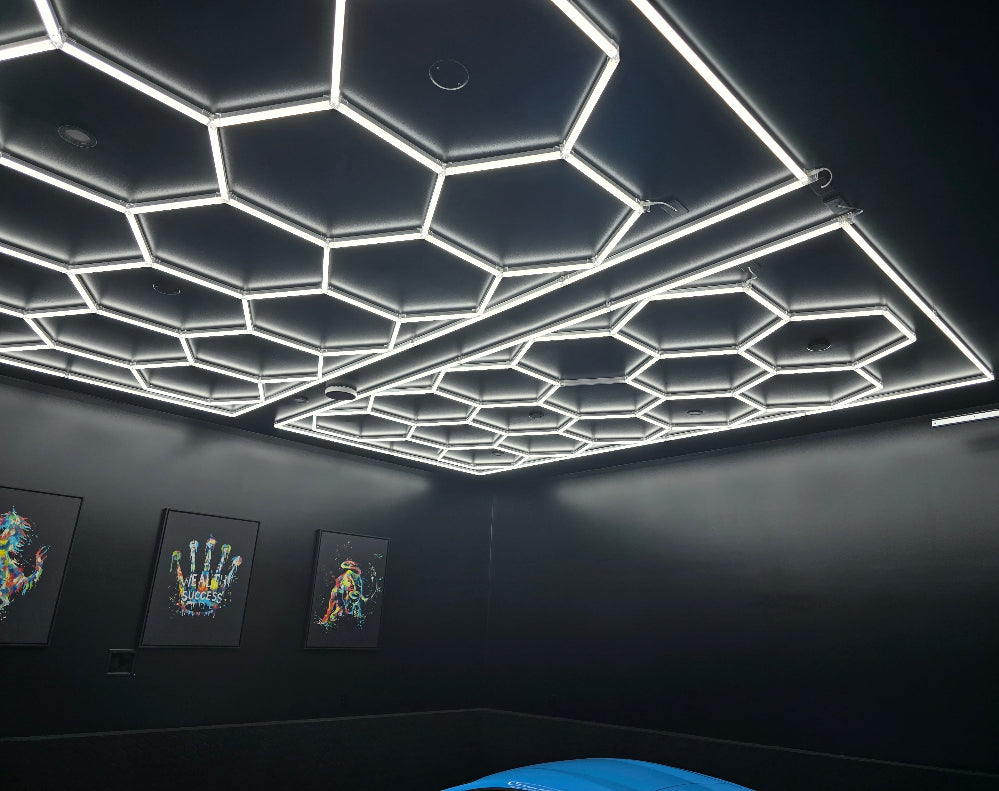

- Fits a wide single bay. Tighter bay? Go with 8×15.7 ft.
- 1 wall dimmer (1 zone) + remote control included
- Wiring schematic for this size: included
Couldn't find that size in the picker above. Please pick it there.
Measure your ceiling first.

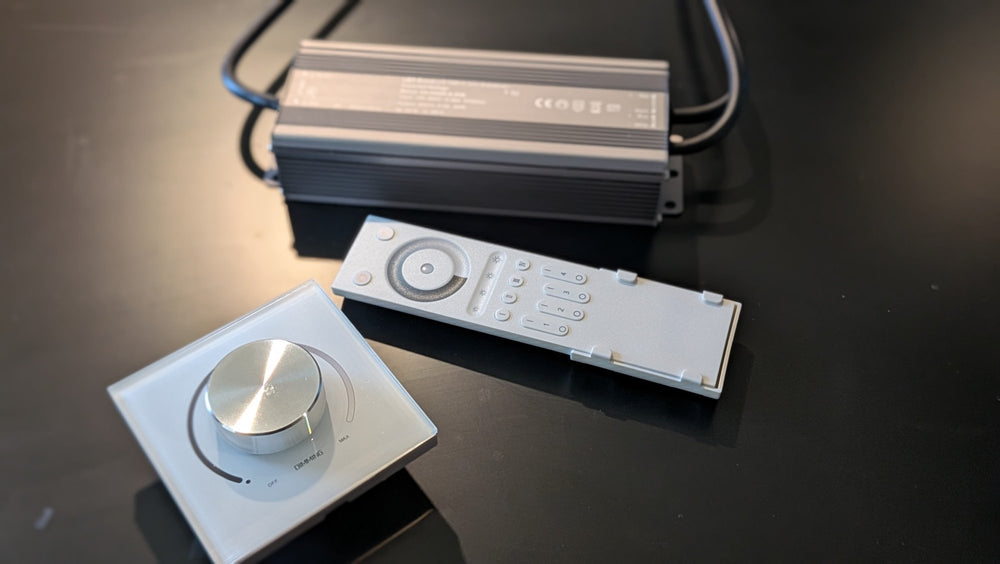

Everything you need, in one box
No guessing about parts. Your kit is matched to your size.

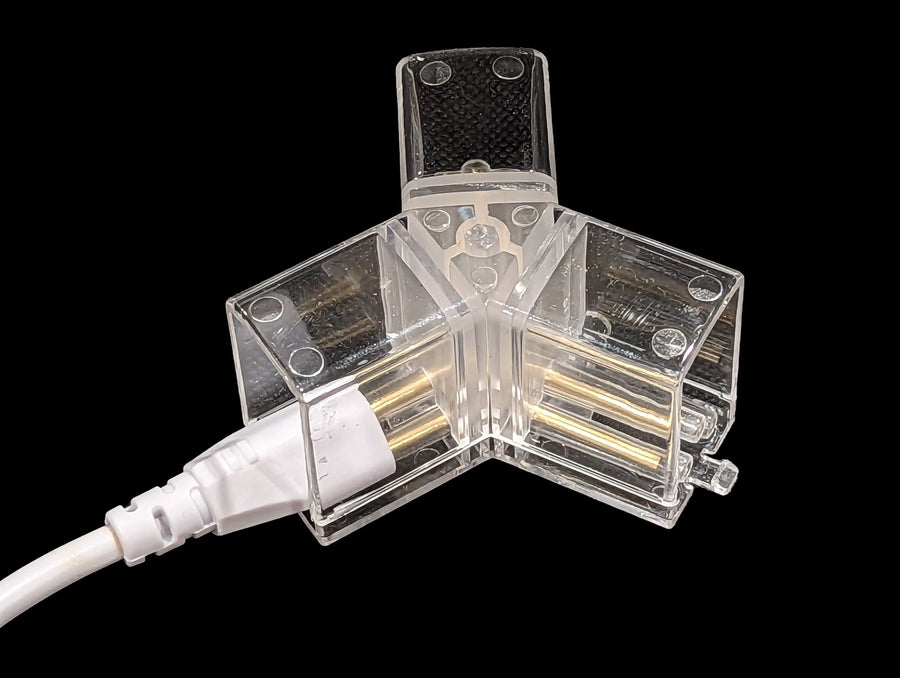

Hex light bars + connectors
Every bar and click-together connector for your size. CRI >90, 151° beam per bar.

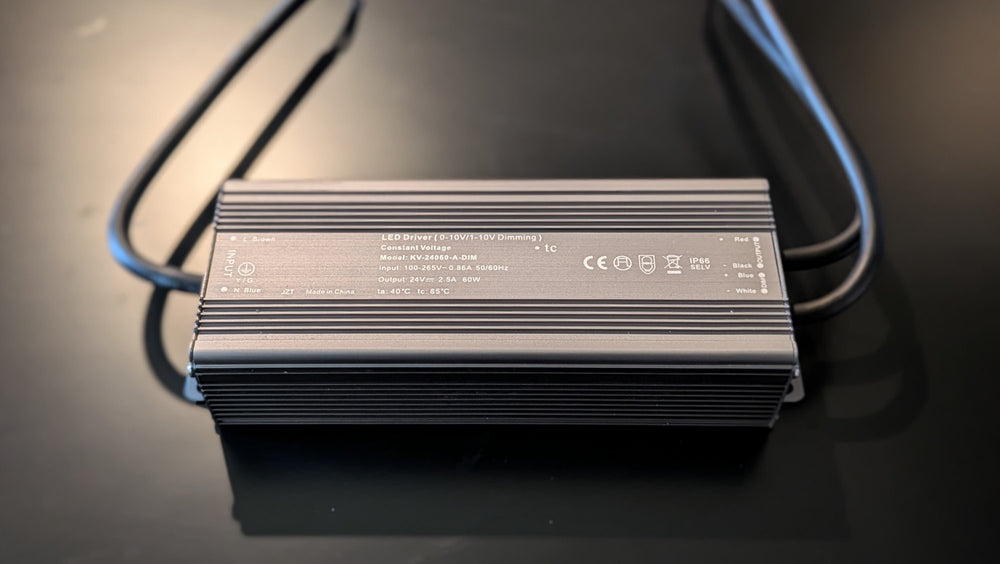

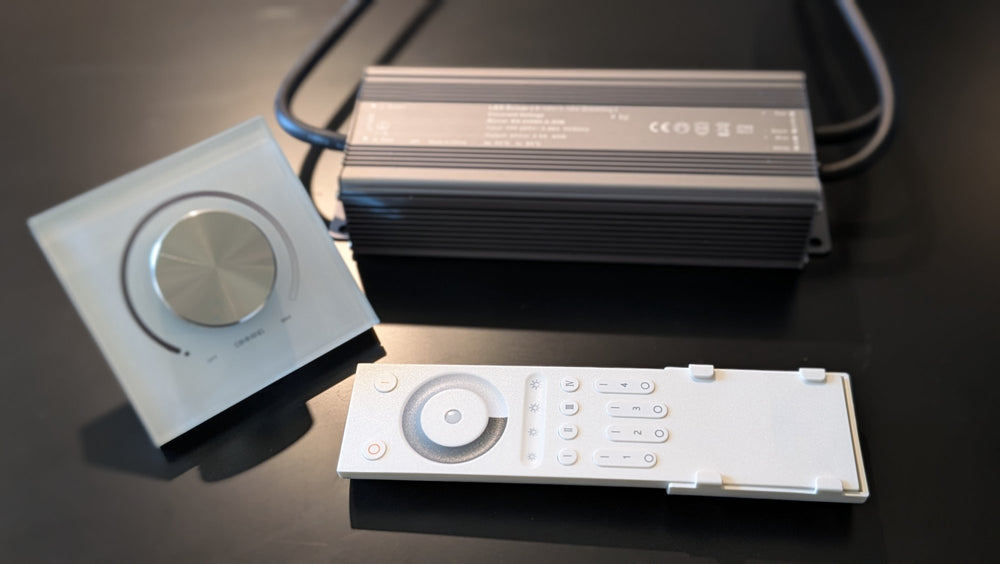

300W dimmable driver(s)
Turns 110–277V AC into 24V DC. UL / cUL listed. Covered by the 5-year (60-month) kit warranty.
Rotary wall dimmer
1 wall dimmer switch (one per zone; extra zones $89 each). Push for on/off, turn to dim from 0.1% to 100%.

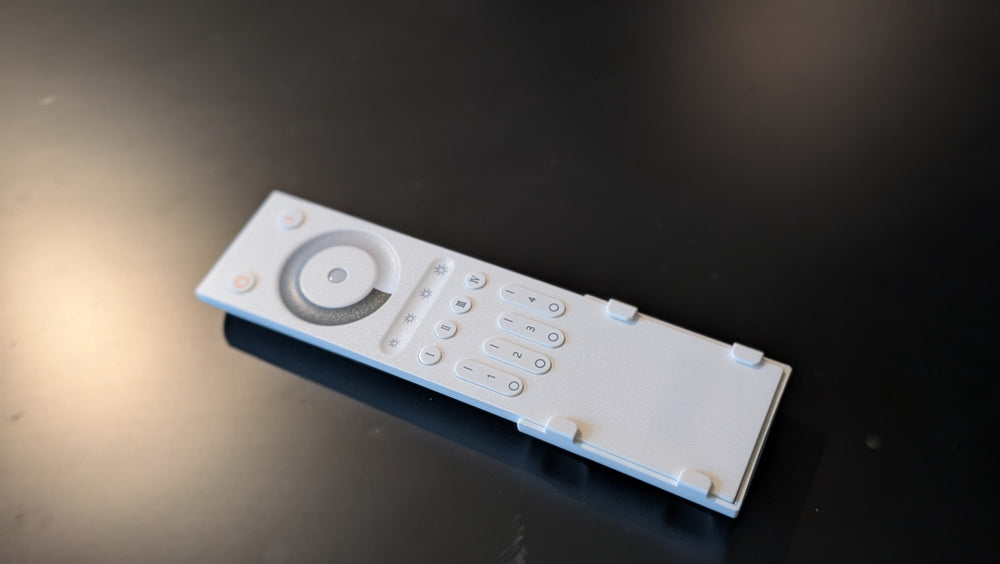

2.4GHz RF remote
Dim from anywhere in the room. Pairs with the wall dimmer switch, which has the receiver built in. 25/50/75/100% presets.
Wiring schematic + drawing
A dimensioned drawing and schematic for your exact grid.
Mounting zip ties
For drop-ceiling grids. The grid can also be screwed to the ceiling or hung on cable.

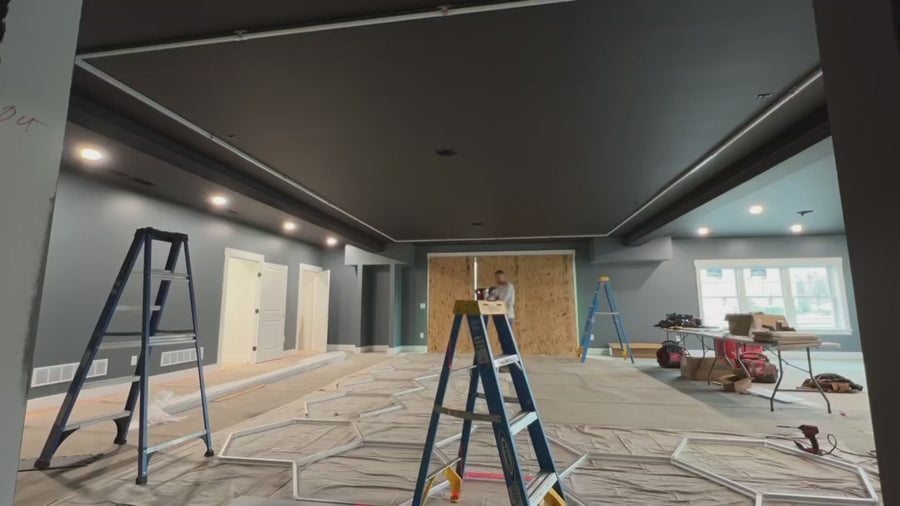

From box to glow in 3 steps
Build it on the floor, hang it, dim it.
1
Snap it together
Lay the grid out on the floor and test it. Push each bar in straight until it clicks.
2

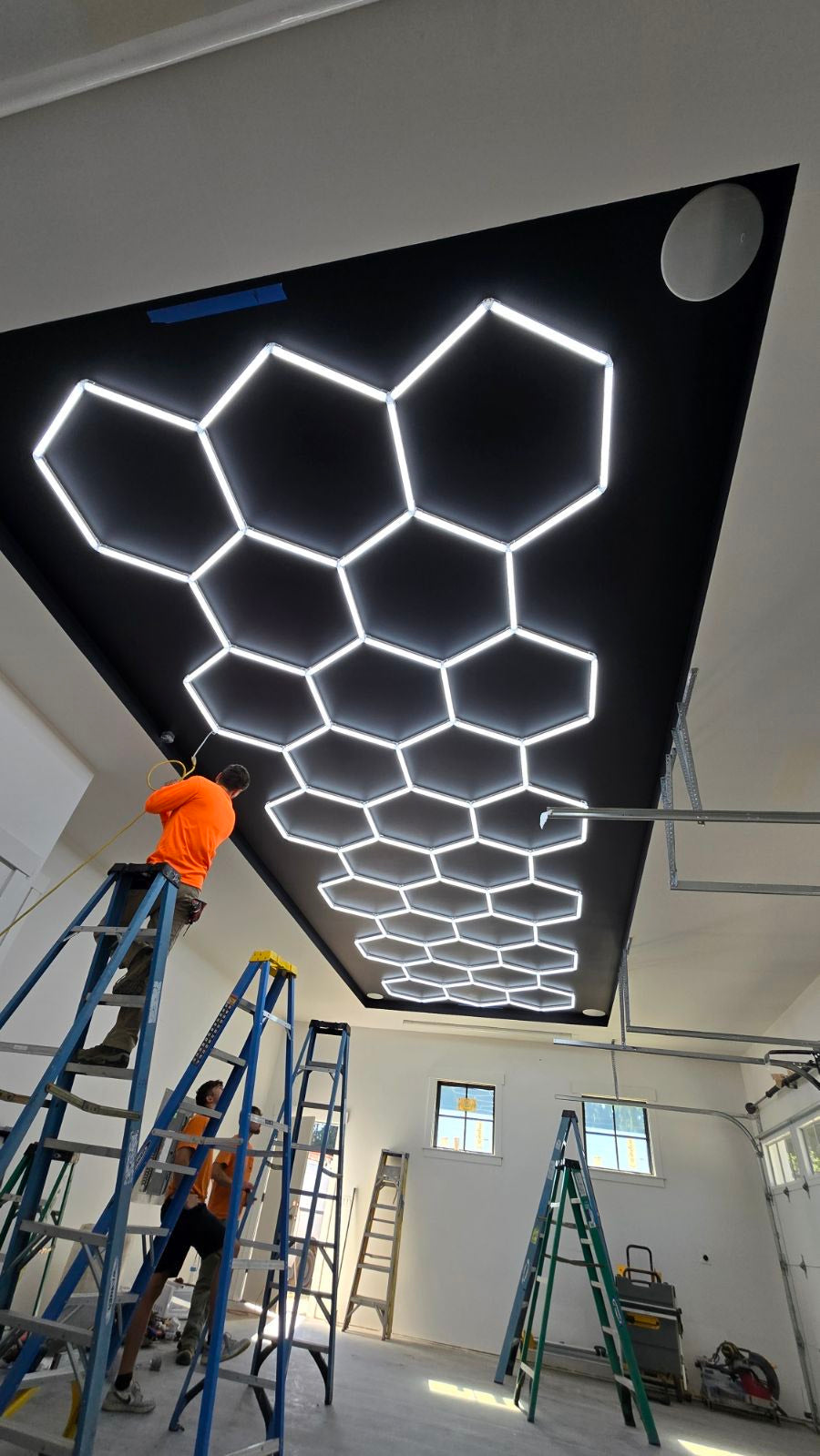

Mount it up
Zip-tie it, screw it to the ceiling, or hang it on cable. Your electrician wires the drivers.
3
Dial it in
Turn the wall dimmer or slide the remote. Any brightness you want, no flicker at the low end.
How it compares
Want the most light, full stop? Get our standard AC grid. Want light you can control? This is the one.
| Low Voltage Hex (this kit) | Standard AC Hex | |
|---|---|---|
| Dimming | Smooth 0–100% | On/off (dimmable AC model: 3 steps) |
| Remote control | 2.4GHz RF remote, included | Wall switch only |
| Voltage at the ceiling | 24V DC | 100–240V AC |
| Shadow-free coverage | 180° across 10+ bars | 180° across 10+ bars |
| True color (CRI >90) | Yes | Yes |
| Custom layouts | Yes, design service | Yes, design service |
| Max brightness per 2 ft bar | 6.5W · 748 lm | 8W · 920 lm (brightest) |
Hex figures are from our engineering sheets. Low voltage and AC bars give the same light per watt, but LV bars draw 6.5 W vs 8 W.
Dimming: low voltage vs standard
Drag the slider to set the brightness level.
Can't dim below 30%
Illustration of dimming range based on rated output per 2 ft bar: 6.5W · 748 lm (low voltage) vs 8W · 920 lm (standard).

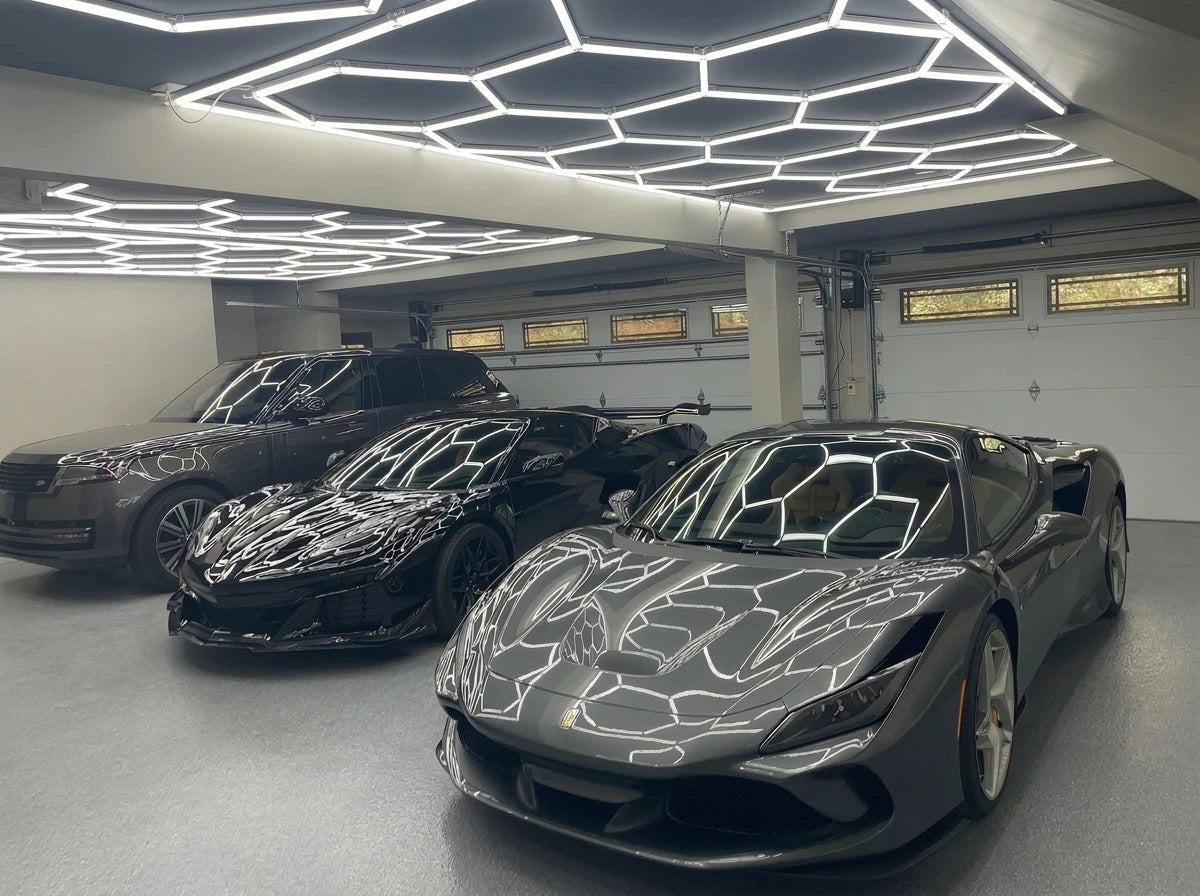

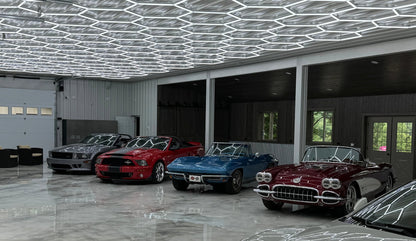

From garages like yours
Customer Reviews
Overall rating: 4.7 / 5 from 119 reviews.
Came just as advertised
Easy to install and lights are very nice
Store owner replied: Hey Clayton, Thanks so much for the 5 star review...We really appreciate it!
Absolutely wonderful look and fast delivery
Store owner replied: Hi Alevtina, Thanks a bunch for the 5-stars. Love the look of the lights in the recessed ceiling area. HG
Very good
Color LED Hexagon Garage Lights
Store owner replied: Hey Wegdi! Love the look... thanks so much for the five-star review. HG
The lights turned out better than I imagined. I've had them installed for 6 months now. My friends and family are amazed at the new look of the garage. It's definitely a showcase for my vehicles! I was able to talk to Ross from start to finish which helped out greatly. He led me through the whole process of what to look out for and how to set up my power supply to the lights. That was a huge help and cost savings. I wouldn't hesitate to give him a call for some ideas and light systems.
Store owner replied: Hi John, Looks amazing! thanks so much for the five-star review. We really appreciate it and can't thank you enough. Best Ross
Brightness of these lights almost hurt your eyes they are prefect for a garage they are no dark spots anywhere in my garage now.. if your on the fence pull the trigger I got the 20'x20' because they didn't have a 30x30. Definitely worth it
Nice modern look
The lighting delivered the WOW factor we were looking for, and the end result looks fantastic. Ross was a pleasure to work with—very responsive and helpful throughout the process. One thing that would have been helpful earlier on was receiving the amp and electrical requirements in advance, as our installers needed that information to properly size the wiring for the grid.
LED Hexagon Garage Lights Custom Order
Store owner replied: Thanks for the five star review. Looks like we originally supplied the load calculation but there were so many iterations over the months, the original numbers no longer applied. We do however include your load calculation in your manual and you can reach us anytime. Thanks again for the review. HG
After mutple conversations to get a clear idea of the final layout that we had in mind Ross tweaked the design until we had just what we wanted. We received the product in 10 boxes for a complete ceiling in a 3000 sq foot showroom , it seemed a bit overwhelming. Within the box was a perfectly explained picture layout with ever bar and style of connector accounted for . Once we got started and made sure that the first row was square to the room, we got very comfortable with process and the ceiling came together perfectly! To say that I recommend this product from this company is an understatement, kiddos to Ross and his team for tons of support and patience to get exactly what we wanted .
LED Hexagon Garage Lights Custom Order
Store owner replied: Hey Andre, looks amazing…thanks so much for the five star review. We work diligently to ensure that we arrive at the best possible layout for every space. Thanks for keeping the channel open long enough for us to knock this out of the park. Your team did an excellent job! Best, HG
Love it! Great quality!
Store owner replied: Hey Roy! Thanks for the 5-star review...looks great! HG
Easy to install looks great
Dimmable Hexagon Garage Lights
Store owner replied: Hey Jonathan, looks awesome! We are super excited to have your approval praise. Thanks so much for the five-star review. Best, HG
I own a PMU Studio and this light has been a HUGE game changer!! No more flimsy glamcore light! Besides the fact that it’s visually appealing with its hexagon shape and super simple installation, I love how it doesn’t create shadows! I have gotten so many compliments from my clients!
Store owner replied: Hi Renee, Thanks so much for the 5 star review. We're super excited to hear that you are pleased and receiving compliments. All the best- HG
Looks great.
Amazing customer service. They walked me through a custom color and size build. One of the lights were damaged when delivered and they sent me a replacement with no questions asked. Two years after the installation, a couple of the perimeter lights started flashing and they sent me replacements with no issues. I Love this place.
Store owner replied: Hey Anthony, thanks so much for taking the time to leave us yet another review. You are amazing and we appreciate you coming back to us for your second purchase. Seems fitting that we go the extra mile.. You do have the predecessor to our current product which is several iterations from your first purchase, but rest assured that we will continue to support your needs. Best HG
Build it on the floor use a spot laser mark out mounting holes on ceiling probably best lights on the market
Hexagon Garage Grid Hanging Kit
Store owner replied: Hey Alan, Thanks so much for the five star review. We're stoked to see you back again and appreciate your review. Aces to you sir! HG
Very professional and easy to work with. Was very impressed with the response time and advice that was given. Highly recommend!
My hexagonal lights were a key component in my garage make over project.
Dimmable Hexagon Garage Lights
Store owner replied: Hey Marc, Looks great!! Thanks for the 5 star review. HG
My detailer had these in his shop. I made sure to purchase the same ones. My neighbors want to hang out in my garage over cocktails! Absolutely recommend
Store owner replied: Hi Richard, Thanks so much for the five star review. we really appreciate it. HG
pretty nice lights Gives shops magical lights
Put these in our gym and they look amazing!
Awesome
Dimmable Hexagon Lights | Hex Garage
Store owner replied: Hey Grant! Thanks a bunch for the 5-star review....This looks amazing! HG
its the coolest thing in our office!
I got the dimmable option and I got the lights custom made for my barbershop a couple months ago and these guys were nothing but professional, not a single light was flickering or didn’t work, there was a slight mix up with my order but I spoke with the guys at Hexgarage and they took care of it ASAP they are really good at responding and helping as much as they can with any product you have, I promise you will not be disappointed and Hexgarage is the only place you need to stop at for Hexagon lights 🙏🏼🙏🏼🙏🏼
Store owner replied: Hey Luis, this is amazing... first off your shop looks great and we are really happy to have been a part of it. furthermore, this review is above and beyond what we ever expect. we sincerely appreciate your effort and the time it took to write this review. Thanks again. HG
These lights are wonderful Love the ability to dim them
Store owner replied: Hi Perry, forget about the lights…That’s quite a collection you have. we are super stoked to have been a part of your project and are delighted to have received the coveted five-star review. thanks for being amazing. we can't do this without having amazing customers. HG
Great product, looks the part 100%!!! Ross is amazing and knows his stuff.
Dimmable Hexagon Lights | Hex Garage
Store owner replied: Hey Garrett! Thanks a bunch for the proclamation...I like to think we keep our eye on the ball at all times. Project turned out amazing. Thanks again! R
I recently installed the Hexagon Garage dimmable LED lighting in my home gym garage, and I couldn't be more thrilled with the results. This lighting system has completely transformed the space, giving it an exotic and modern feel that makes every workout session a delight. One of the standout features of this lighting system is its three-staged step dimming. With just a simple flip of the switch, you can easily adjust the brightness to suit your needs. Whether you want full illumination at 100% brightness, a more relaxed ambiance at 60%, or a softer, 30% setting while bench pressing, this lighting system has you covered. The flexibility to change the lighting intensity with such ease is a game-changer, allowing you to create the perfect atmosphere for any activity. The sleek hexagonal design not only looks fantastic but also provides excellent coverage, ensuring that every corner of your garage gym is well-lit. The LEDs are energy-efficient. In addition to the incredible product, the customer service experience was exceptional. From the moment I reached out with inquiries, the team was responsive, knowledgeable, and genuinely interested in helping me find the perfect lighting solution for my garage gym. They provided detailed information and guidance, making the planning process smooth and stress-free. Their expertise ensured that I made an informed decision, and their support continued through the installation process, offering tips and assistance whenever needed. In summary, the Hexagon Garage dimmable LED lighting is a must-have for anyone looking to elevate their garage or workshop. Its stylish design, versatile dimming options, superior performance, and outstanding customer service make it a top-notch choice. Highly recommended!
Dimmable Hexagon Lights | Hex Garage
Store owner replied: Hi Jose, this really looks great and thanks so much for the five star review. This is certainly the most detailed and thorough reviews that that we have ever received. The time and effort on your part is greatly appreciated. You Rock! HG
They turned out great! They made my home gym pop!
Hexagon Garage Lights LED Lighting
Store owner replied: Hey Joey, this looks great! Thanks so much for the five-star review. Looks like you've got a pretty awesome gym. Enjoy! HG
They look terrific and give plenty of light. We put them on a dimmer.
Dimmable Hexagon Lights | Hex Garage
Store owner replied: Hi Sherri, this turned out great. Thanks so much for sharing with us and do let us know if you need anything. Best, HG
We absolutely love our lights! They provide the perfect amount of light for our oversized garage. They were really easy to install. DIY project putting them up and then our electrician wired them to our pre-wired wall switch. Highly recommend these lights.
Hexagon Garage Lights | 2 Grid Bundle
Store owner replied: Hi Wendi! Thanks a bunch for the five-star review. We love hearing about your experience and are delighted to know that you are happy with your lights....HG
Love this product the brightest lighting I have ever had and I have 3 other shops. This is easy to assemble and install. Light weight and beautiful. 100% recommended.
Hexagon Garage Lights | LED Ceiling Grid
Store owner replied: Hi Mohamad, Amazing! We really appreciate your 5-star review and recommendation. Best- HG
Great lighing effect and the customers like how it looks on the outside of the windows for our office.
Hexagon Garage Lights | 2 Grid Bundle
Store owner replied: Hey Brett, Thanks a bunch for sending this over. We really appreciate you sharing your thoughts and the five star review. Best, HG
The lights arrived sooner than expected. Once I started installing I realized my space was not as large as I had thought and I needed to redesign the layout. Their support was extremely helpful and timely, always there when I had a question. The lights are now installed and look great.
Dimmable Hexagon Lights | Hex Garage
Store owner replied: Hi Daniel, Thanks a bunch for the 5-star review. Glad we were able to find a solution. HG
I just wanted to post the completed project, which in my opinion it looks amazing and it was easy to install all three kits by myself. I can see all my tools and display diecast clearly. I enjoy showing off my garage to all my neighbors, guest, and friends with pride. I promote the HECK!! out of this product because I believe in every aspect of the service and quality provided to me. Way to go!!
Hexagon Garage Lights | LED Lighting Grid
Store owner replied: Hey James! You rock dude...Thanks for the 5-star review. We're thrilled to hear you boast about your experience and our product.. Your review is more than inspirational! HG
Took a while to get the product but once it delivered, the packaging was good. The lights arrived in good condition. The install was simple but took time to install but once install the lights are amazing! During the install, all the pieces fit well. Light output is great and well distributed. GREAT PRODUCT!
Hexagon Garage Lights | 2 Grid Bundle
Store owner replied: Hi Allen, Thanks so much for the five star review. We really appreciate it. Some orders were admittedly delayed coming off of the Black Friday and Thanksgiving weekends. We are truly grateful for the five-star review though your order took longer to arrive than expected. HG
Feedback Ross came in the clutch
Dimmable Hexagon Lights | Hex Garage
Store owner replied: Hey Anthony! Thanks so much...Glad we could make this happen for you...All the best HG
I truly have nothing to say, other then they were a great purchase and you shouldn’t regret yours ..:
Hexagon Garage Lights | 5 Piece Hex Grid
Store owner replied: Hi James, Thanks so much for the five star review! We are totally thrilled and appreciate you sharing your photos and thoughts. HG
Cool
Dimmable Hexagon Lights | Hex Garage
Store owner replied: Hi Brent, Thanks a bunch for the five star review... Looks great. Would love to see more HG
Great product
Dimmable Hexagon Lights | Hex Garage
Store owner replied: Hey Cory, Thanks a bunch for the 5-star review! Looks like this is going to be awesome once you're don...We really enjoy the feedback. It let's us know that we are doing right by our customers. Best, HG
Very nice light
Color Hexagon Garage Grid Light
Store owner replied: Hi Wegdi, Thanks so much for the five star review. We really value your feedback and willingness to share your experience. Your shop looks great. Thanks again! HG
Buy with confidence
Questions before you buy
Still unsure? Call 1-866-845-6605. A lighting tech will help you choose.
Is it as bright as your standard hex lights?
Close, but not quite at full power. At 100%, a 2 ft low voltage bar is rated 6.5W · 748 lm vs 8W · 920 lm on AC. Want the most light? Choose our AC grid. Want control? Choose this one.
What comes in the box?
Bars, connectors, zip ties, the dimmable driver(s) (quantity set by your grid's total wattage), 1 wall dimmer switch (one per zone; extra zones $89 each; 2.4GHz receiver built in), a 2.4GHz remote control and a wiring schematic for your size.
Do I need an electrician?
Yes, for the AC hookup to each driver. The grid itself clicks together, and only 24V DC goes to the ceiling.
Is it hard to install?
You build the grid on the floor, test it, then mount it. Each bar pushes straight in and clicks. Every kit has a drawing and a wiring schematic.
Will my dimmer work?
It works with 0-10V, 1-10V, potentiometer and 10V PWM dimmers. Regular household dimmers are not listed as compatible.
Does it work with Alexa, Google or Lutron?
Yes, with add-ons. Alexa and Google Assistant control works with the optional LTECH smart hub, sold separately. For Lutron, add a Lutron 0-10V module. It also works with standard 0-10V wall dimmers.
Can I control different areas separately?
Yes. Each zone is a separately switched area with its own wall dimmer switch. One wall dimmer switch (one zone) comes with every kit. For each extra zone, add another wall switch for $89 using “Need more than one zone?” below the Add to cart button. Your remote controls up to 4 zones.
Do these hexagon lights come with a remote?
Yes. Every low voltage kit includes a 2.4GHz RF remote control and the wall dimmer switch it pairs with (the receiver is built into the dimmer). Dim the grid from the car or anywhere in the room.
How far does the remote reach?
Up to 100 ft (30 m) to the wall dimmer, where the receiver is built in. Metal can block the signal.
Will it flicker when dimmed low?
No. The wall dimmer has a small trim screw behind the faceplate. Set it once and the grid stays steady at its lowest level.
How many drivers do I need?
Driver quantity is determined by the total wattage of your grid. Each 300W driver runs up to 36 two-foot bars. A 19×25 ft grid needs 5. Your schematic shows the exact number. See "Plan your power" below.
What if a bar stops working?
Pop it out with the removal tool and click in a new one. No wire nuts, no soldering. The kit (grid + driver) has a 5-year (60-month) warranty.
The details
Specs, power planning and care.

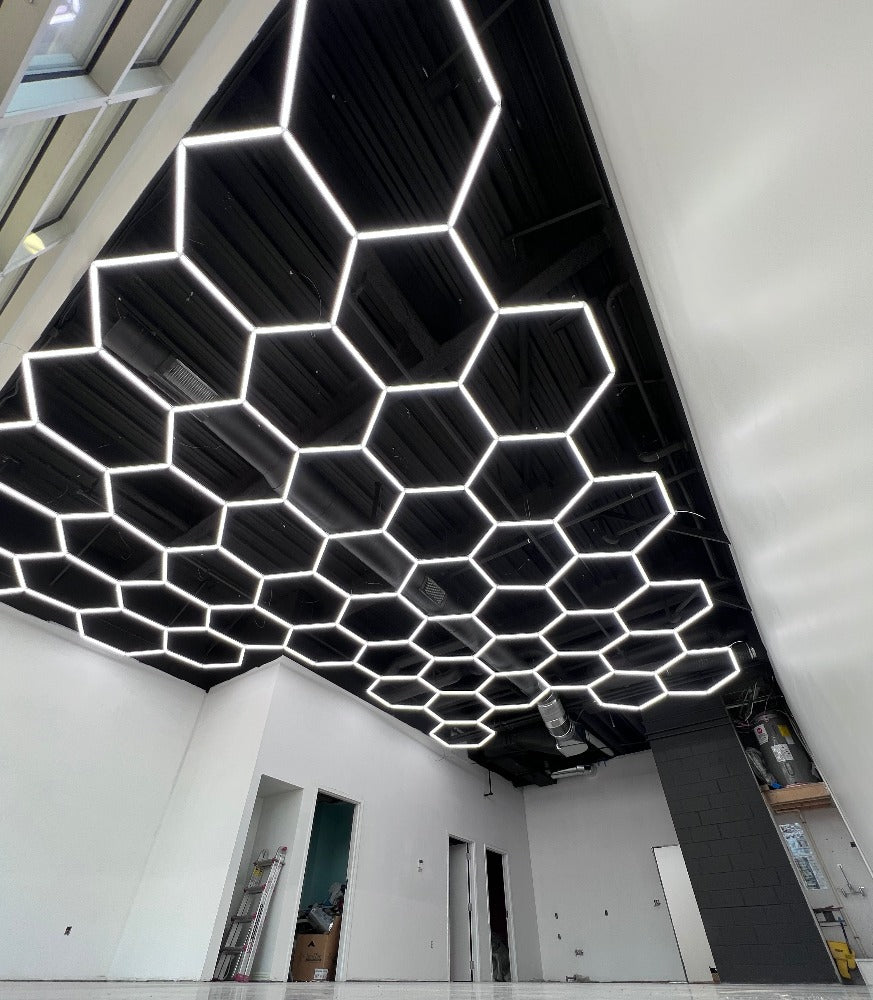

Plan your power: how many drivers?
Keep each 300W driver at or under 240 W (80%) and 42 bars.
| Drivers | 2 ft bars (6.5 W) | 1.5 ft bars (≤5.2 W) | 4 ft bars (12.5 W) | Max load |
|---|---|---|---|---|
| 1 | 36 | 42 | 19 | 240 W |
| 2 | 72 | 84 | 38 | 480 W |
| 3 | 108 | 126 | 57 | 720 W |
| 4 | 144 | 168 | 76 | 960 W |
| 5 | 180 | 210 | 95 | 1,200 W |
| 6 | 216 | 252 | 114 | 1,440 W |
| 8 | 288 | 336 | 152 | 1,920 W |
| 10 | 360 | 420 | 190 | 2,400 W |

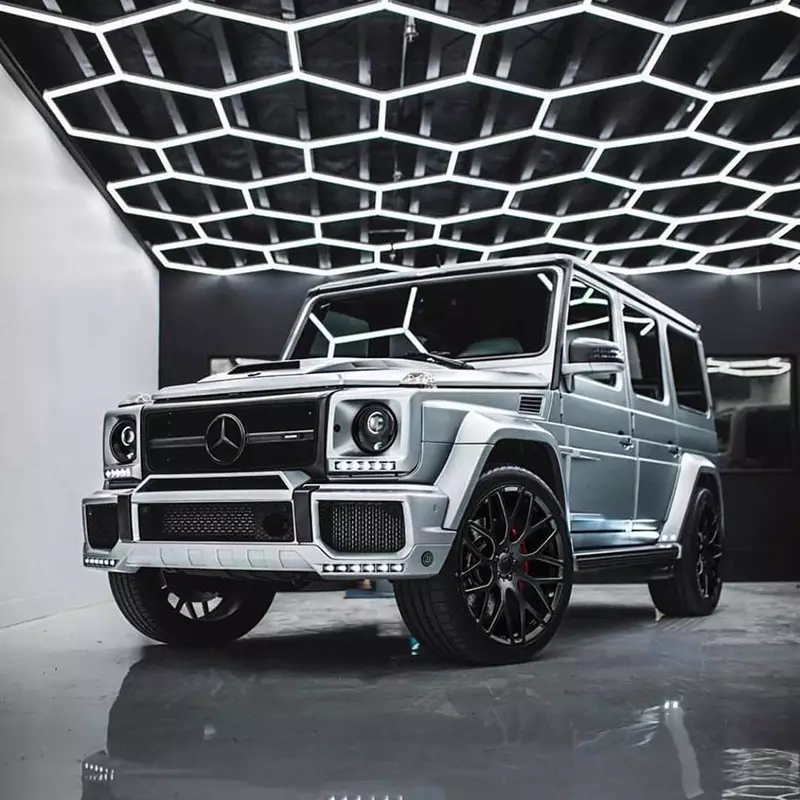

Example: 19×25 ft, 151 × 6.5 W = 981.5 W → 5 drivers. Above 40 °C (104 °F) drivers derate.
Light grid specs
24V DC · 1.5 ft 4.27–5.20 W, 2 ft 6.5 W, 4 ft 12.5 W · 115–120 lm/W · CRI >90 Ra · 151° per bar, 180° across 10+ bars · 6063 aluminum, PC diffuser · 22 × 35 mm profile
Driver specs (KVD-24300-DIM)
24V DC, 12.5 A, 300 W CV · 110–277V AC in · PF 0.99 @120V · 88% @120V / 92% @277V · 0-10V / 1-10V / pot / 10V PWM, 0–100% · short-circuit, overload, over-heat protection · −40 to +60 °C · IP66 (EU), wet location (US) · UL / cUL / FCC / CE / RoHS / REACH · covered by the 5-year (60-month) kit warranty
Installation in 6 steps
Plan drivers → build and test on the floor → push bars in straight until they click → mount (1 anchor per 4–6 connectors) → electrician wires AC to drivers, dimmer to DIM+/DIM– only → 5-second test, then 30 min at 100%
Care & maintenance
Power down first · swap a bar with the red tool · reseat straight · re-test after changes · anchors and level ±3 mm · driver airflow, don't open · replace remote batteries when weak
Troubleshooting
- Grid dark: tripped breaker, open switch, or loose or reversed wiring. Check the breaker, verify mains voltage at the driver input and tighten all connections. A driver in protection mode restarts by itself once the fault is cleared.
- One bar or cell dark: power down, remove the bar with the red tool, straighten the pins and reseat until it clicks.
- Far end of the grid dimmer: too many bars on one feed. Add a power drop / driver and rebalance.
- Flicker at the lowest dimmer setting: remove the dimmer faceplate and turn the micro-trim screw clockwise until the light is stable.
- Remote not responding: replace the batteries, then re-pair the remote to the wall dimmer switch (the receiver is in the dimmer) using the steps in its instructions.
Low Voltage Hexagon Garage Lights
Light it up your way.
Pick your size and color. We'll send the grid, the drivers and a wiring schematic made for it.
Not a standard size? Get a custom layout
